Block factories

Dextinity offers factories for common block use cases.

BlocksBlock​

The BlocksBlock factory is used to create a block that consists of multiple child blocks.

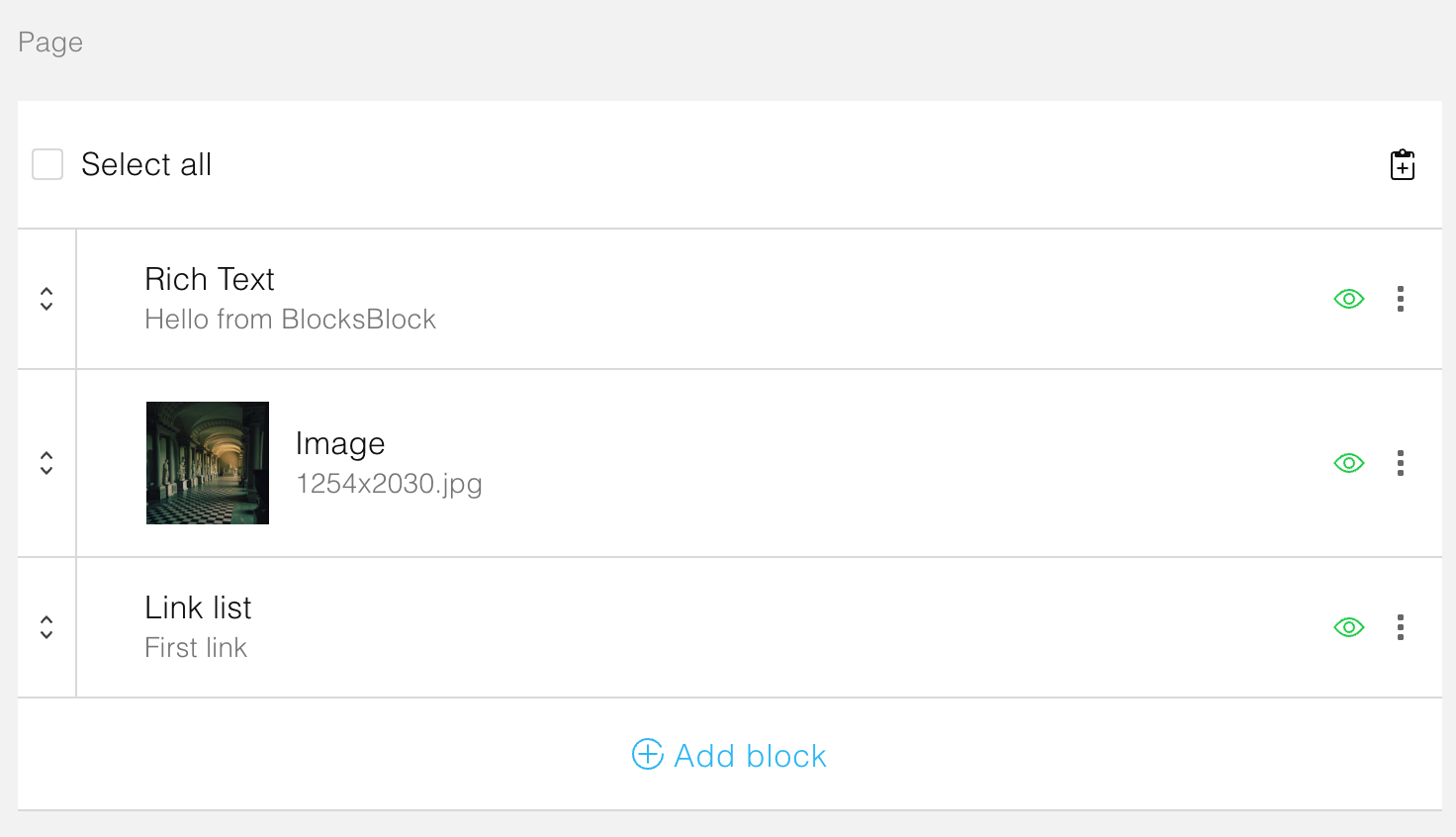

A BlocksBlock that supports rich text, image, and link list child blocks

API​

Use the createBlocksBlock factory:

page-content.block.ts
import { createBlocksBlock } from "@dextinity/cms-api";

export const PageContentBlock = createBlocksBlock(
{
supportedBlocks: {
richText: RichTextBlock,
image: DamImageBlock,
linkList: LinkListBlock,
},
},
"PageContent",
);

Admin​

Use the createBlocksBlock factory:

PageContentBlock.tsx
import { createBlocksBlock } from "@dextinity/cms-admin";

export const PageContentBlock = createBlocksBlock({
name: "PageContent",
supportedBlocks: {
richText: RichTextBlock,
image: DamImageBlock,
linkList: LinkListBlock,
},
});

Site​

Use the BlocksBlock component:

PageContentBlock.tsx
import { BlocksBlock, PropsWithData, SupportedBlocks } from "@dextinity/site-nextjs";
import { PageContentBlockData } from "@src/blocks.generated";

const supportedBlocks: SupportedBlocks = {
richText: (props) => <RichTextBlock data={props} />,
image: (props) => <DamImageBlock data={props} />,
linkList: (props) => <LinkListBlock data={props} />,
};

export function PageContentBlock({ data }: PropsWithData<PageContentBlockData>) {
return <BlocksBlock data={data} supportedBlocks={supportedBlocks} />;
}

ColumnsBlock​

The ColumnsBlock factory is used to create a block that displays content in multiple columns. A ColumnsBlock may support different layouts for the same number of columns. For instance, two columns could be represented by three layouts: Same width, weighted left, weighted right.

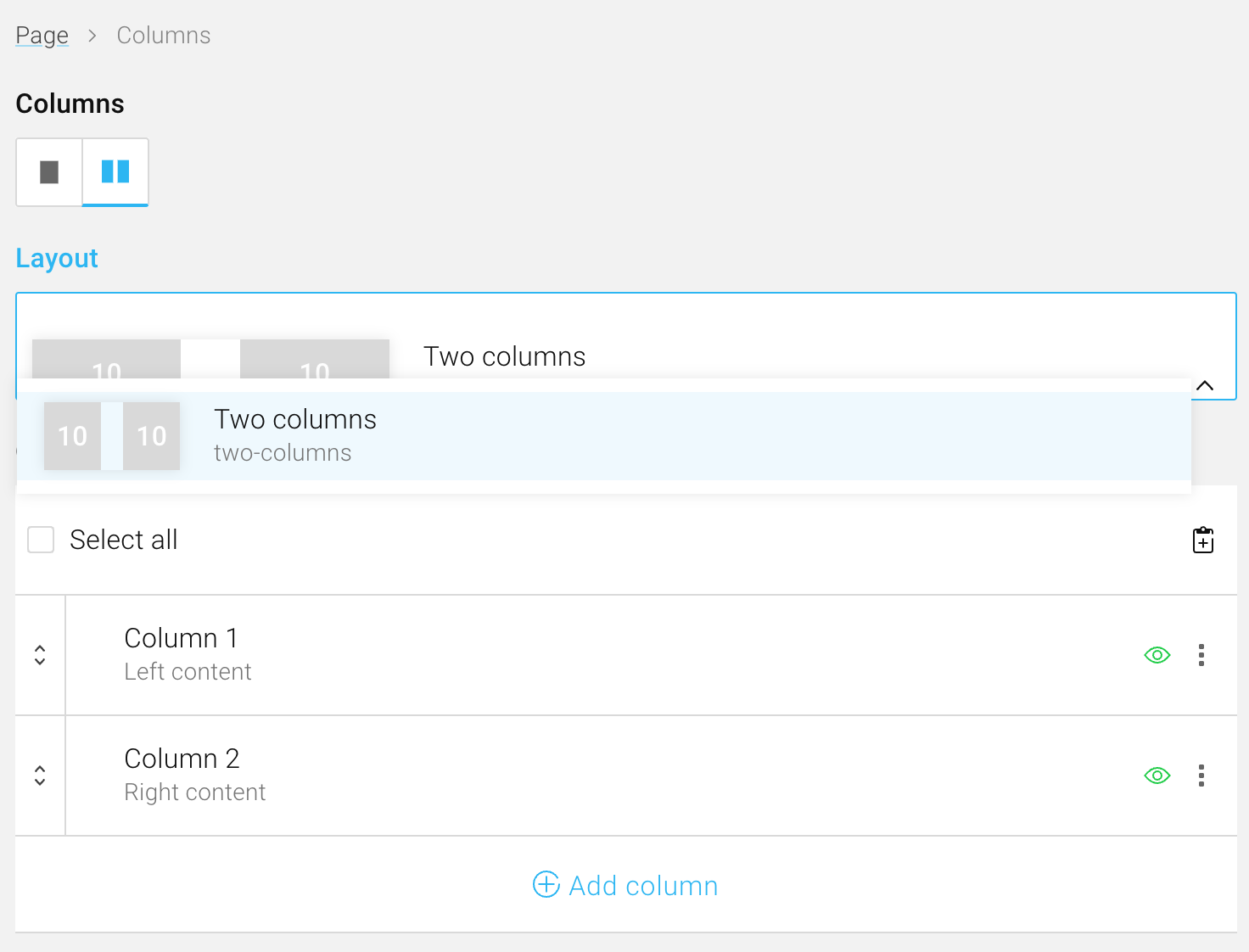

A ColumnsBlock that supports single-column and two columns layouts

API​

Use the ColumnsBlockFactory:

columns.block.ts
import { ColumnsBlockFactory, createBlocksBlock } from "@dextinity/cms-api";

const ColumnsContentBlock = createBlocksBlock(
{
supportedBlocks: {
space: SpaceBlock,
richText: RichTextBlock,
headline: HeadlineBlock,
image: DamImageBlock,
},
},
"ColumnsContent",
);

export const ColumnsBlock = ColumnsBlockFactory.create(
{
contentBlock: ColumnsContentBlock,
layouts: [{ name: "one-column" }, { name: "two-columns" }],
},
"Columns",
);

Admin​

Use the createColumnsBlock factory:

ColumnsBlock.tsx
import {
ColumnsLayoutPreview,
ColumnsLayoutPreviewContent,
ColumnsLayoutPreviewSpacing,
createBlocksBlock,
createColumnsBlock,
} from "@dextinity/cms-admin";

const ColumnsContentBlock = createBlocksBlock({
name: "ColumnsContent",
supportedBlocks: {
space: SpaceBlock,
richText: RichTextBlock,
headline: HeadlineBlock,
image: DamImageBlock,
},
});

export const ColumnsBlock = createColumnsBlock({
name: "Columns",
layouts: [
{
name: "one-column",
label: "One column",
columns: 1,
preview: (
<ColumnsLayoutPreview>
<ColumnsLayoutPreviewSpacing width={2} />
<ColumnsLayoutPreviewContent width={20} />
<ColumnsLayoutPreviewSpacing width={2} />
</ColumnsLayoutPreview>
),
},
{
name: "two-columns",
label: "Two columns",
columns: 2,
preview: (
<ColumnsLayoutPreview>
<ColumnsLayoutPreviewContent width={10} />
<ColumnsLayoutPreviewSpacing width={4} />
<ColumnsLayoutPreviewContent width={10} />
</ColumnsLayoutPreview>
),
},
],
contentBlock: ColumnsContentBlock,
});

Site​

ColumnsBlock.tsx
import { BlocksBlock, PropsWithData, SupportedBlocks, withPreview } from "@dextinity/site-nextjs";
import { ColumnsBlockData, ColumnsContentBlockData } from "@src/blocks.generated";

const supportedBlocks: SupportedBlocks = {
space: (props) => <SpaceBlock data={props} />,
richText: (props) => <RichTextBlock data={props} />,
headline: (props) => <HeadlineBlock data={props} />,
image: (props) => <DamImageBlock data={props} />,
};

function ColumnsContentBlock({ data }: PropsWithData<ColumnsContentBlockData>) {
return <BlocksBlock data={data} supportedBlocks={supportedBlocks} />;
}

export function ColumnsBlock({ data: { layout, columns } }: PropsWithData<ColumnsBlockData>) {
const Root = layout === "one-column" ? OneColumnRoot : TwoColumnRoot;
return (
<Root>
{columns.map((column) => (
<ColumnsContentBlock key={column.key} data={column.props} />
))}
</Root>
);
}

CompositeBlock (Admin only)​

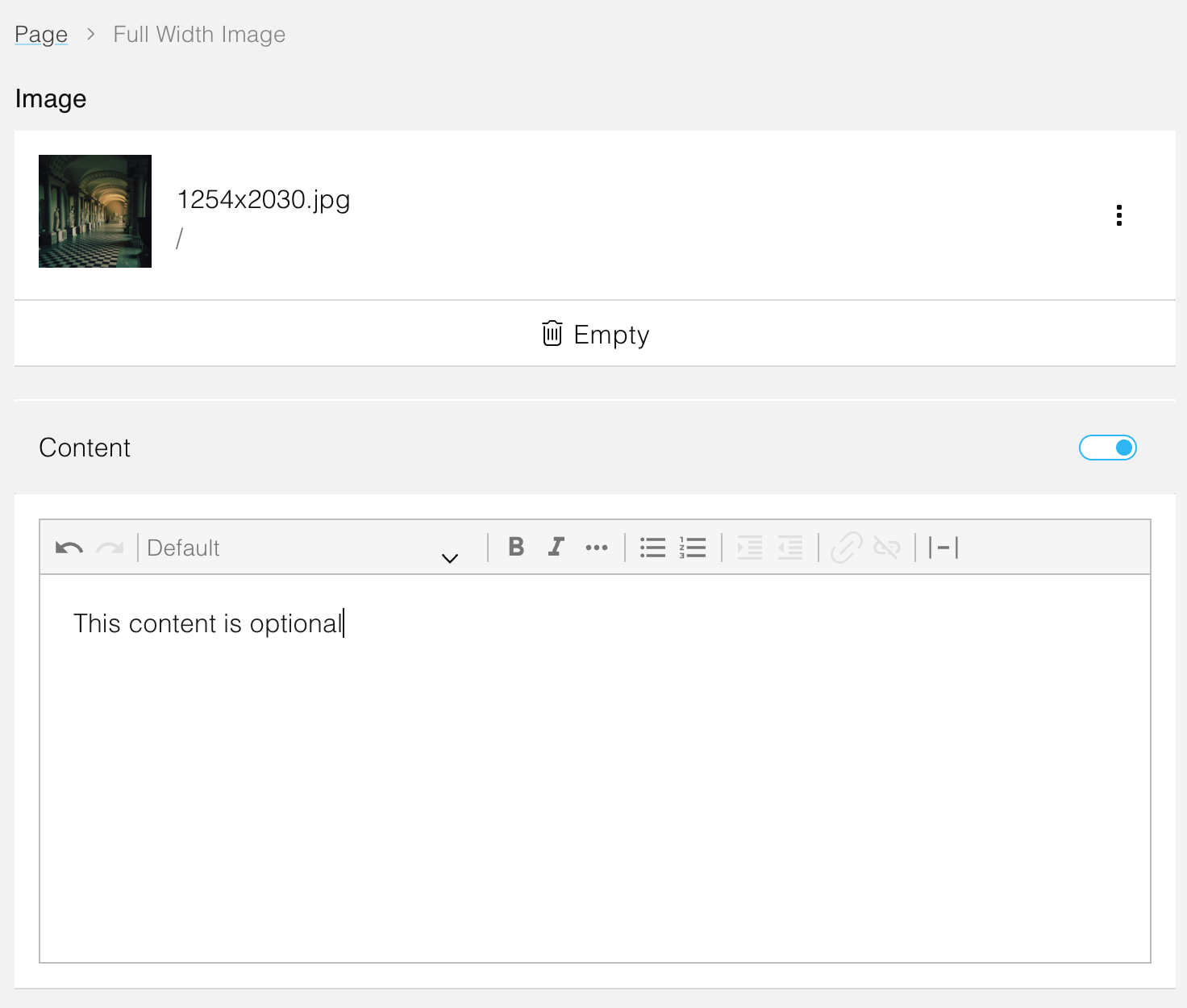

The createCompositeBlock factory composes several child blocks and fields into a block. For most of your blocks, you will use this factory to create the block in the admin.

FullWidthImageBlock.tsx
import { createCompositeBlock } from "@dextinity/cms-admin";

export const FullWidthImageBlock = createCompositeBlock({
name: "FullWidthImage",
displayName: <FormattedMessage id="blocks.fullWidthImage" defaultMessage="Full Width Image" />,
category: BlockCategory.Media,
blocks: {
image: {
block: DamImageBlock,
title: <FormattedMessage id="generic.image" defaultMessage="Image" />,
paper: true,
},
content: {
block: FullWidthImageContentBlock,
title: <FormattedMessage id="generic.content" defaultMessage="Content" />,
},
},
});

DamVideoBlock​

The DamVideoBlock factory creates a block for a video from the DAM. It has one option for each thing it offers besides the video file itself:

  • controls: The playback options autoplay, loop and show controls.
  • previewImage: The poster image shown before playback.

Both are enabled by default and disabled by passing false. @dextinity/cms-api and @dextinity/cms-admin export a ready-made DamVideoBlock created with those defaults. Use the createDamVideoBlock factory when a site doesn't need all of them, for instance an app integration that only reads the video's URL.

Give the block a name of its own — DamVideo is taken by the exported DamVideoBlock — and use that same name and the same options in both the API and the Admin.

API​

Use the createDamVideoBlock factory:

teaser-video.block.ts
import { createDamVideoBlock } from "@dextinity/cms-api";

// For a site that only reads the video's URL
export const TeaserVideoBlock = createDamVideoBlock({ controls: false, previewImage: false }, "TeaserVideo");

Disabled options are part of neither the block's data nor its input, so they don't show up in blocks.generated.ts and aren't stored for new content. Sending them as input is rejected by validation.

Values that were stored before an option was disabled survive reading: the block loads them unchanged, and migrateBlocks writes them back as they are. They don't survive editing, though — saving a block in the Admin rebuilds its data from the input, which no longer carries the disabled options. So disabling an option leaves existing content untouched until an editor saves that block, and drops the values from then on. Note that such a value is no longer treated as a child block, so a preview image kept this way isn't part of the block index either.

warning

Disabling an option is therefore not reversible for content that is edited in the meantime. Enabling it again only brings back the values of blocks that nobody saved while the option was disabled.

Migrations​

A block created by the factory carries the migrations shipped with the DamVideoBlock as vendor migrations. So it can replace the DamVideoBlock in an existing project: it reads the content the DamVideoBlock stored, and its own migrations start with version 1, like for any other block.

Own migrations are passed via migrate:

teaser-video.block.ts
import { createDamVideoBlock, typeSafeBlockMigrationPipe } from "@dextinity/cms-api";

export const TeaserVideoBlock = createDamVideoBlock(
{ previewImage: false },
{ name: "TeaserVideo", migrate: { version: 1, migrations: typeSafeBlockMigrationPipe([AddSomethingMigration]) } },
);

A block that supports the preview image also defaults a missing one to an empty preview image when it loads content. That covers content no migration reaches, for instance content stored while the preview image was disabled, before it was enabled again. Run migrateBlocks to write the migrated and defaulted data back:

pnpm console migrateBlocks

Replacing the DamVideoBlock​

A project replacing the exported DamVideoBlock with a block that disables options keeps their stored values, as described above. To remove them, add a migration:

video.block.ts
import { BlockMigration, type BlockMigrationInterface, createDamVideoBlock, typeSafeBlockMigrationPipe } from "@dextinity/cms-api";

interface DamVideoBlockData {
damFileId?: string;
autoplay?: boolean;
showControls?: boolean;
loop?: boolean;
previewImage: unknown;
}

class RemoveControlsAndPreviewImageMigration extends BlockMigration<(from: DamVideoBlockData) => { damFileId?: string }> implements BlockMigrationInterface {
public readonly toVersion = 1;

protected migrate({ damFileId }: DamVideoBlockData) {
return { damFileId };
}
}

export const VideoBlock = createDamVideoBlock(
{ controls: false, previewImage: false },
{ name: "Video", migrate: { version: 1, migrations: typeSafeBlockMigrationPipe([RemoveControlsAndPreviewImageMigration]) } },
);

Use the new block wherever the DamVideoBlock was used, for instance under the same key in a BlocksBlock, and run migrateBlocks to write the migrated data back.

Admin​

Use the createDamVideoBlock factory:

TeaserVideoBlock.tsx
import { createDamVideoBlock } from "@dextinity/cms-admin";

export const TeaserVideoBlock = createDamVideoBlock({ name: "TeaserVideo", controls: false, previewImage: false });

Disabled options are neither offered in the editor nor sent to the API, so disable the same options as in the API block.

The supports array the Admin factory took before is deprecated. It only hides options from the editor and still sends them, as the DamVideoBlock exported by the API requires. Replace it with the options together with an API block created with the same options:

-createDamVideoBlock({ name: "TeaserVideo", supports: ["controls"] });
+createDamVideoBlock({ name: "TeaserVideo", previewImage: false });

Site​

Render the video with the fields the block supports:

TeaserVideoBlock.tsx
import { PropsWithData } from "@dextinity/site-nextjs";
import { TeaserVideoBlockData } from "@src/blocks.generated";

export function TeaserVideoBlock({ data: { damFile } }: PropsWithData<TeaserVideoBlockData>) {
if (!damFile) {
return null;
}

return <video src={damFile.fileUrl} />;
}

ExternalLinkBlock​

The ExternalLinkBlock lets editors enter a URL and offers two options besides it: "Open in new window" and "No follow". Where an option has no effect — for instance in redirects, which resolve to an HTTP redirect without target or rel — use the createExternalLinkBlock factory to disable it. Both options are enabled by default and disabled by passing false.

A disabled option doesn't exist in the block at all: it is absent from block-meta.json and the generated types, and sending it as input is rejected by validation. Such a block is a block of its own, with its own name, and needs an API block, an admin block and a site component.

API​

url-link.block.ts
import { createExternalLinkBlock } from "@dextinity/cms-api";

export const UrlLinkBlock = createExternalLinkBlock({ openInNewWindow: false, noFollow: false }, "UrlLink");

Replacing the ExternalLinkBlock at an existing usage site, for instance under the external key of a LinkBlock, needs no migration: a OneOfBlock resolves by key, not by block name. Values stored for a disabled option stay in the block's JSON but aren't passed on to the admin or the site, and are dropped the next time an editor saves the block.

Admin​

Use the same name and disable the same options as in the API:

UrlLinkBlock.tsx
import { createExternalLinkBlock } from "@dextinity/cms-admin";

export const UrlLinkBlock = createExternalLinkBlock({ name: "UrlLink", openInNewWindow: false, noFollow: false });

Site​

Rendered as a OneOfBlock target, as in the LinkBlock example, the ExternalLinkBlock from @dextinity/site-nextjs can render the block as well: an option the block doesn't have is undefined and treated like false. When passing the data typed, for instance as UrlLinkBlockData, write a component of your own:

UrlLinkBlock.tsx
import { PropsWithData } from "@dextinity/site-nextjs";
import { UrlLinkBlockData } from "@src/blocks.generated";
import { PropsWithChildren } from "react";

export function UrlLinkBlock({ data: { targetUrl }, children }: PropsWithChildren<PropsWithData<UrlLinkBlockData>>) {
if (!targetUrl) {
return <span>{children}</span>;
}

return <a href={targetUrl}>{children}</a>;
}

The ExternalLinkBlock additionally hands the link over to the admin in the site preview. Keep that in mind for content that is edited in the site preview.

FinalFormBlock (Admin only)​

The FinalFormBlock factory can be used to convert a block's AdminComponent API to the Final Form Field API. See Using blocks in forms for more details.

ImageLinkBlock​

The ImageLinkBlock factory can be used to combine an image and a link block. It requires a link block to be set. An image block can be set. If none is set, it will default to PixelImageBlock.

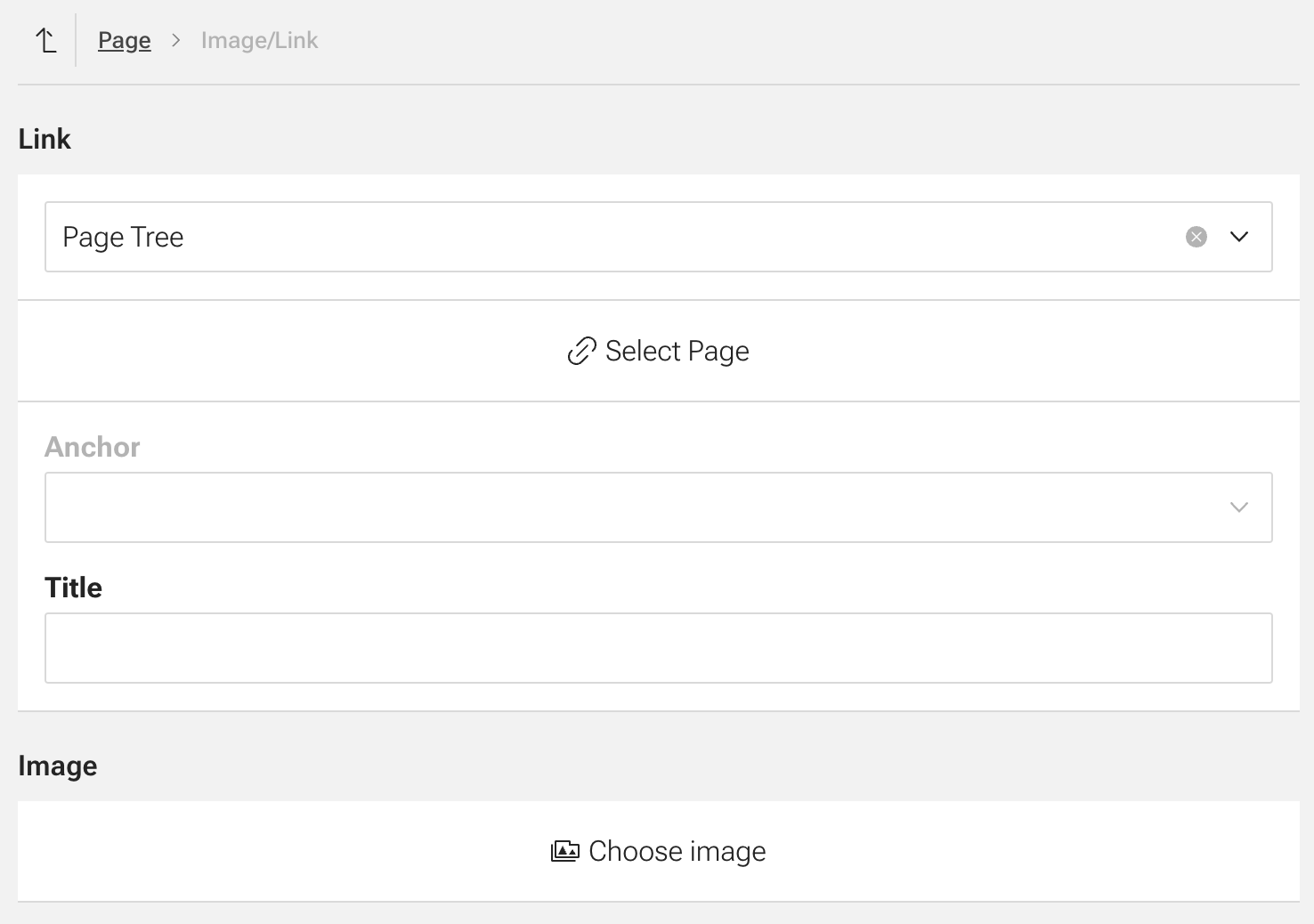

An ImageLinkBlock

API​

Use the createImageLinkBlock factory:

image-link.block.ts
import { createImageLinkBlock, DamImageBlock } from "@dextinity/cms-api";
import { LinkBlock } from "@src/common/blocks/linkBlock/link.block";

export const ImageLinkBlock = createImageLinkBlock({ link: LinkBlock, image: DamImageBlock });

Admin​

Use the createImageLinkBlock factory:

ImageLinkBlock.tsx
import { createImageLinkBlock, DamImageBlock } from "@dextinity/cms-admin";
import { LinkBlock } from "@src/common/blocks/LinkBlock";

export const ImageLinkBlock = createImageLinkBlock({ link: LinkBlock, image: DamImageBlock });

Site​

ImageLinkBlock.tsx
import { PropsWithData } from "@dextinity/site-nextjs";
import { ImageLinkBlockData } from "@src/blocks.generated";
import { DamImageBlock } from "@src/blocks/DamImageBlock";
import { LinkBlock } from "@src/blocks/LinkBlock";

export function ImageLinkBlock({ data: { link, image } }: PropsWithData<ImageLinkBlockData>) {
return (
<LinkBlock data={link}>
<DamImageBlock data={image} aspectRatio="1x1" />
</LinkBlock>
);
}

LinkBlock​

The LinkBlock factory is a specialized OneOfBlock factory that supports setting a title.

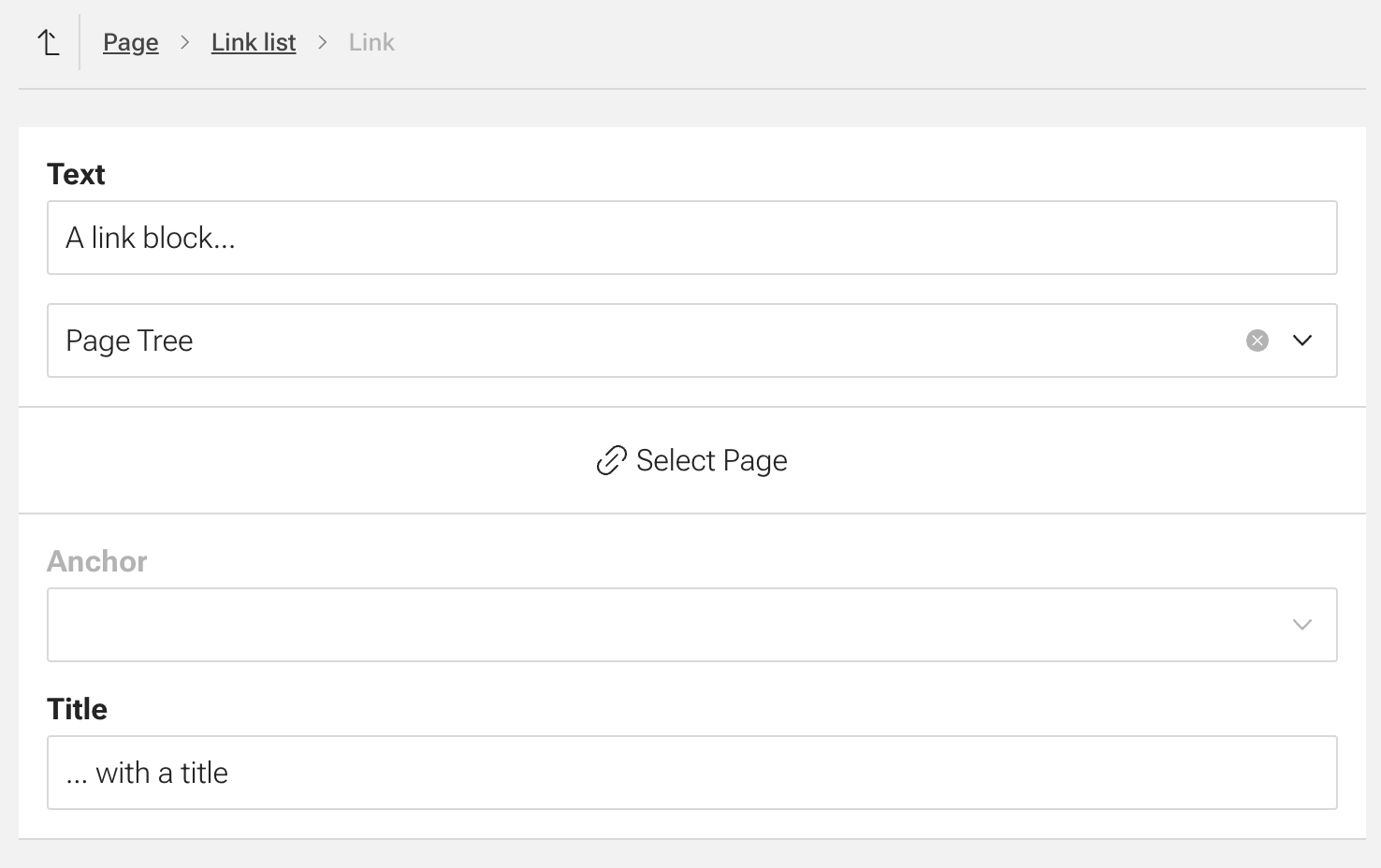

A LinkBlock with a title field

API​

Use the createLinkBlock factory:

link.block.ts
import { createLinkBlock } from "@dextinity/cms-api";

export const LinkBlock = createLinkBlock({
supportedBlocks: {
internal: InternalLinkBlock,
external: ExternalLinkBlock,
news: NewsLinkBlock,
damFileDownload: DamFileDownloadLinkBlock,
phone: PhoneLinkBlock,
email: EmailLinkBlock,
},
});

Admin​

Use the createLinkBlock factory:

LinkBlock.tsx
import { createLinkBlock } from "@dextinity/cms-admin";

export const LinkBlock = createLinkBlock({
supportedBlocks: {
internal: InternalLinkBlock,
external: ExternalLinkBlock,
news: NewsLinkBlock,
damFileDownload: DamFileDownloadLinkBlock,
email: EmailLinkBlock,
phone: PhoneLinkBlock,
},
});

To leave out "Open in new window" or "No follow", pass an external block created with createExternalLinkBlock instead of ExternalLinkBlock, in the API and the admin.

Site​

LinkBlock.tsx
"use client";
import { OneOfBlock, PropsWithData, SupportedBlocks } from "@dextinity/site-nextjs";
import { LinkBlockData } from "@src/blocks.generated";

const supportedBlocks: SupportedBlocks = {
internal: ({ children, title, className, ...props }) => (
<InternalLinkBlock data={props} title={title} className={className}>
{children}
</InternalLinkBlock>
),
external: ({ children, title, className, ...props }) => (
<ExternalLinkBlock data={props} title={title} className={className}>
{children}
</ExternalLinkBlock>
),
news: ({ children, title, className, ...props }) => (
<NewsLinkBlock data={props} title={title} className={className}>
{children}
</NewsLinkBlock>
),
damFileDownload: ({ children, title, className, ...props }) => (
<DamFileDownloadLinkBlock data={props} title={title} className={className}>
{children}
</DamFileDownloadLinkBlock>
),
email: ({ children, title, className, ...props }) => (
<EmailLinkBlock data={props} title={title} className={className}>
{children}
</EmailLinkBlock>
),
phone: ({ children, title, className, ...props }) => (
<PhoneLinkBlock data={props} title={title} className={className}>
{children}
</PhoneLinkBlock>
),
};

interface LinkBlockProps extends PropsWithChildren<PropsWithData<LinkBlockData>> {
className?: string;
}

export function LinkBlock({ data, children, className }: LinkBlockProps) {
return (
<OneOfBlock data={data} supportedBlocks={supportedBlocks} className={className}>
{children}
</OneOfBlock>
);
}

ListBlock​

Similar to the BlocksBlock factory, the ListBlock factory is used to create a block that consists of multiple child blocks. The main difference is that the ListBlock factory only supports a single child block type.

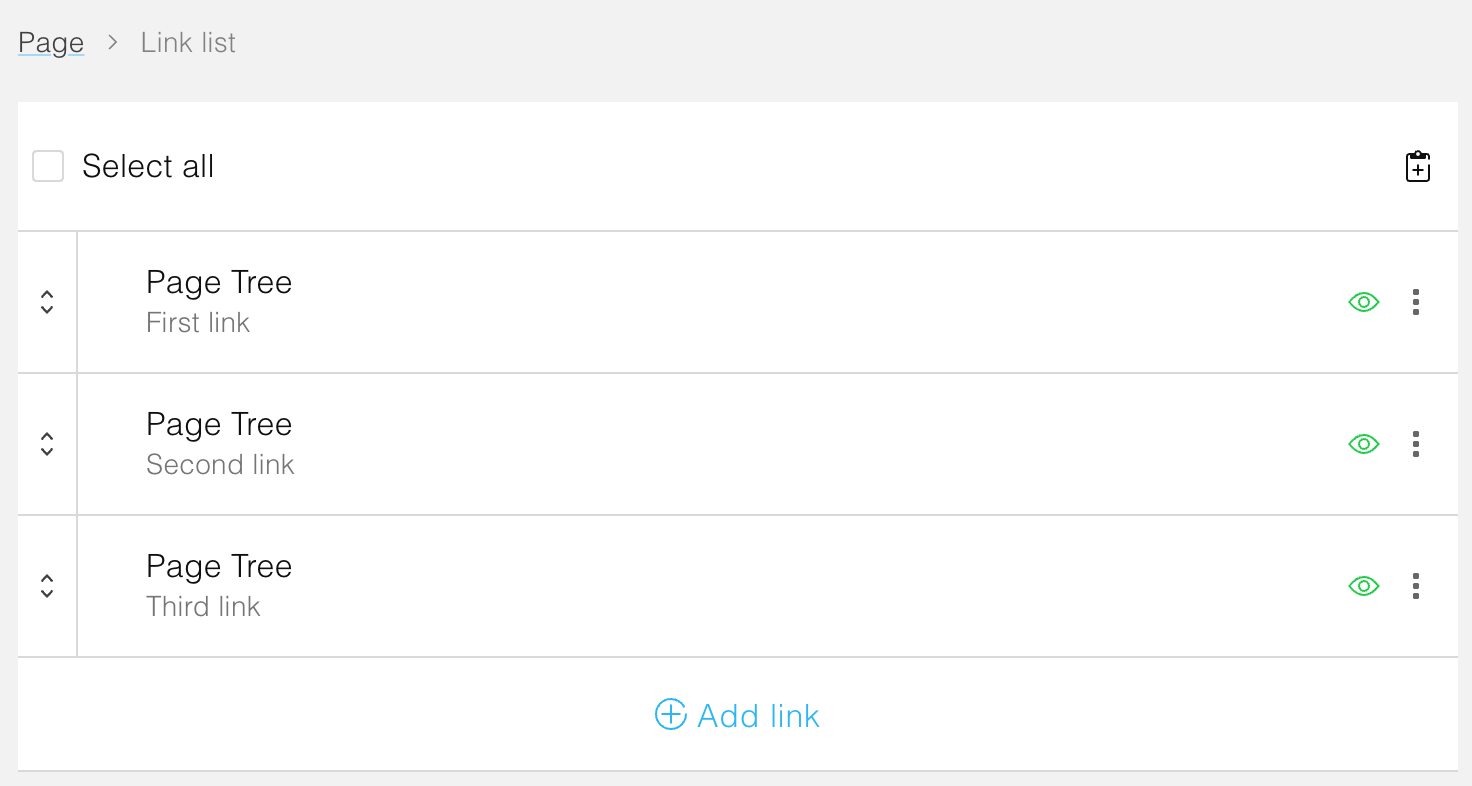

A ListBlock based on a link block

API​

Use the createListBlock factory:

link-list.block.ts
import { createListBlock } from "@dextinity/cms-api";

export const LinkListBlock = createListBlock({ block: TextLinkBlock }, "LinkList");

Admin​

Use the createListBlock factory:

LinkListBlock.tsx
import { createListBlock } from "@dextinity/cms-admin";

export const LinkListBlock = createListBlock({
name: "LinkList",
block: TextLinkBlock,
});

Site​

Use the ListBlock component:

LinkListBlock.tsx
import { ListBlock, PropsWithData } from "@dextinity/site-nextjs";
import { LinkListBlockData } from "@src/blocks.generated";

export function LinkListBlock({ data }: PropsWithData<LinkListBlockData>) {
return <ListBlock data={data} block={(props) => <TextLinkBlock data={props} />} />;
}

OneOfBlock​

The OneOfBlock factory is used to create a block that can be one of several child blocks. Think of it as a switch or select.

A link block that is based on an OneOfBlock to support both internal and external links

API​

Use the createOneOfBlock factory:

link.block.ts
import { createOneOfBlock } from "@dextinity/cms-api";

export const LinkBlock = createOneOfBlock(
{
supportedBlocks: {
internal: InternalLinkBlock,
external: ExternalLinkBlock,
news: NewsLinkBlock,
},
allowEmpty: false,
},
"Link",
);

Admin​

Use the createOneOfBlock factory:

LinkBlock.tsx
import { createOneOfBlock } from "@dextinity/cms-admin";

export const LinkBlock = createOneOfBlock({
supportedBlocks: {
internal: InternalLinkBlock,
external: ExternalLinkBlock,
news: NewsLinkBlock,
},
});

Site​

Use the OneOfBlock component:

LinkBlock.tsx
import { OneOfBlock, PropsWithData, SupportedBlocks } from "@dextinity/site-nextjs";
import { LinkBlockData } from "@src/blocks.generated";

const supportedBlocks: SupportedBlocks = {
internal: ({ children, ...props }) => (
<InternalLinkBlock data={props}>{children}</InternalLinkBlock>
),
external: ({ children, ...props }) => (
<ExternalLinkBlock data={props}>{children}</ExternalLinkBlock>
),
news: ({ children, ...props }) => <NewsLinkBlock data={props}>{children}</NewsLinkBlock>,
};

interface LinkBlockProps extends PropsWithData<LinkBlockData> {
children: React.ReactElement;
}

export function LinkBlock({ data, children }: LinkBlockProps) {
return (
<OneOfBlock data={data} supportedBlocks={supportedBlocks}>
{children}
</OneOfBlock>
);
}

OptionalBlock​

The OptionalBlock factory is used to make a block optional. Use it when some content is optional.

note

Prefer reacting to empty states (e.g., hiding a block when no image is selected) over using an OptionalBlock. Using an OptionalBlock adds additional complexity for users by requiring them to toggle the visibility.

A full-width image block with optional content using an OptionalBlock

API​

Use the createOptionalBlock factory:

optional-image.block.ts
import { createOptionalBlock } from "@dextinity/cms-api";

export const OptionalImageBlock = createOptionalBlock(ImageBlock);

Admin​

Use the createOptionalBlock factory:

OptionalImageBlock.tsx
import { createOptionalBlock } from "@dextinity/cms-admin";

export const OptionalImageBlock = createOptionalBlock(ImageBlock);

Site​

Use the OptionalBlock component:

LinkBlock.tsx
import { OptionalBlock, PropsWithData } from "@dextinity/site-nextjs";
import { OptionalImageBlockData } from "@src/blocks.generated";

export function OptionalImageBlock({ data }: PropsWithData<OptionalImageBlockData>) {
return <OptionalBlock block={(props) => <ImageBlock data={props} />} data={data} />;
}

RichTextBlock​

The RichTextBlock factory can be used to create a block with a rich text. It requires a link block to be set.

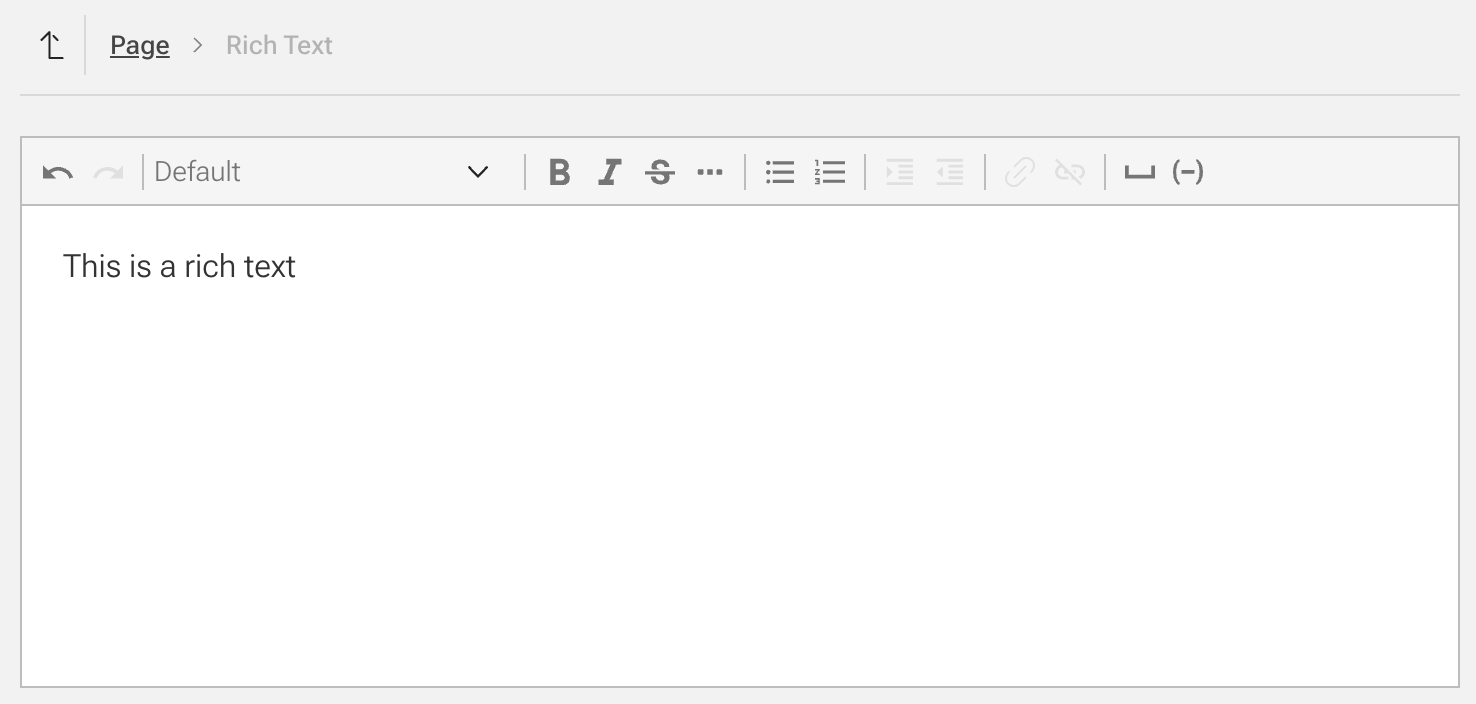

A RichTextBlock

API​

Use the createRichTextBlock factory:

rich-text.block.ts
import { createRichTextBlock } from "@dextinity/cms-api";

import { LinkBlock } from "./linkBlock/link.block";

export const RichTextBlock = createRichTextBlock({ link: LinkBlock });

Admin​

Use the createRichTextBlock factory:

RichTextBlock.tsx
import { createRichTextBlock } from "@dextinity/cms-admin";

import { LinkBlock } from "./LinkBlock";

export const RichTextBlock = createRichTextBlock({ link: LinkBlock });

Site​

RichTextBlock.tsx
import { hasRichTextBlockContent, PreviewSkeleton, PropsWithData } from "@dextinity/site-nextjs";
import { LinkBlockData, RichTextBlockData } from "@src/blocks.generated";
import redraft, { Renderers } from "redraft";

import { LinkBlock } from "./LinkBlock";

const defaultRenderers: Renderers = {
inline: {
BOLD: (children, { key }) => <strong key={key}>{children}</strong>,
ITALIC: (children, { key }) => <em key={key}>{children}</em>,
},
blocks: {
unstyled: (children, { keys }) =>
children.map((child, idx) => <p key={keys[idx]}>{child}</p>),
"header-one": (children, { keys }) =>
children.map((child, idx) => <h1 key={keys[idx]}>{child}</h1>),
"header-two": (children, { keys }) =>
children.map((child, idx) => <h2 key={keys[idx]}>{child}</h2>),
"header-three": (children, { keys }) =>
children.map((child, idx) => <h3 key={keys[idx]}>{child}</h3>),
"header-four": (children, { keys }) =>
children.map((child, idx) => <h4 key={keys[idx]}>{child}</h4>),
"header-five": (children, { keys }) =>
children.map((child, idx) => <h5 key={keys[idx]}>{child}</h5>),
"header-six": (children, { keys }) =>
children.map((child, idx) => <h6 key={keys[idx]}>{child}</h6>),
},
entities: {
LINK: (children, data, { key }) => {
return (
<LinkBlock key={key} data={data as LinkBlockData}>
{children}
</LinkBlock>
);
},
},
};

interface RichTextBlockProps extends PropsWithData<RichTextBlockData> {
renderers?: Renderers;
}

export function RichTextBlock({ data, renderers = defaultRenderers }: RichTextBlockProps) {
const rendered = redraft(data.draftContent, renderers);

return (
<PreviewSkeleton title="RichText" type="rows" hasContent={hasRichTextBlockContent(data)}>
{rendered}
</PreviewSkeleton>
);
}

SeoBlock​

The SeoBlock factory can be used to create a block for common SEO options, e.g. HTML title or meta description. An image block can be set for the Open Graph image. If none is set, it will default to PixelImageBlock.

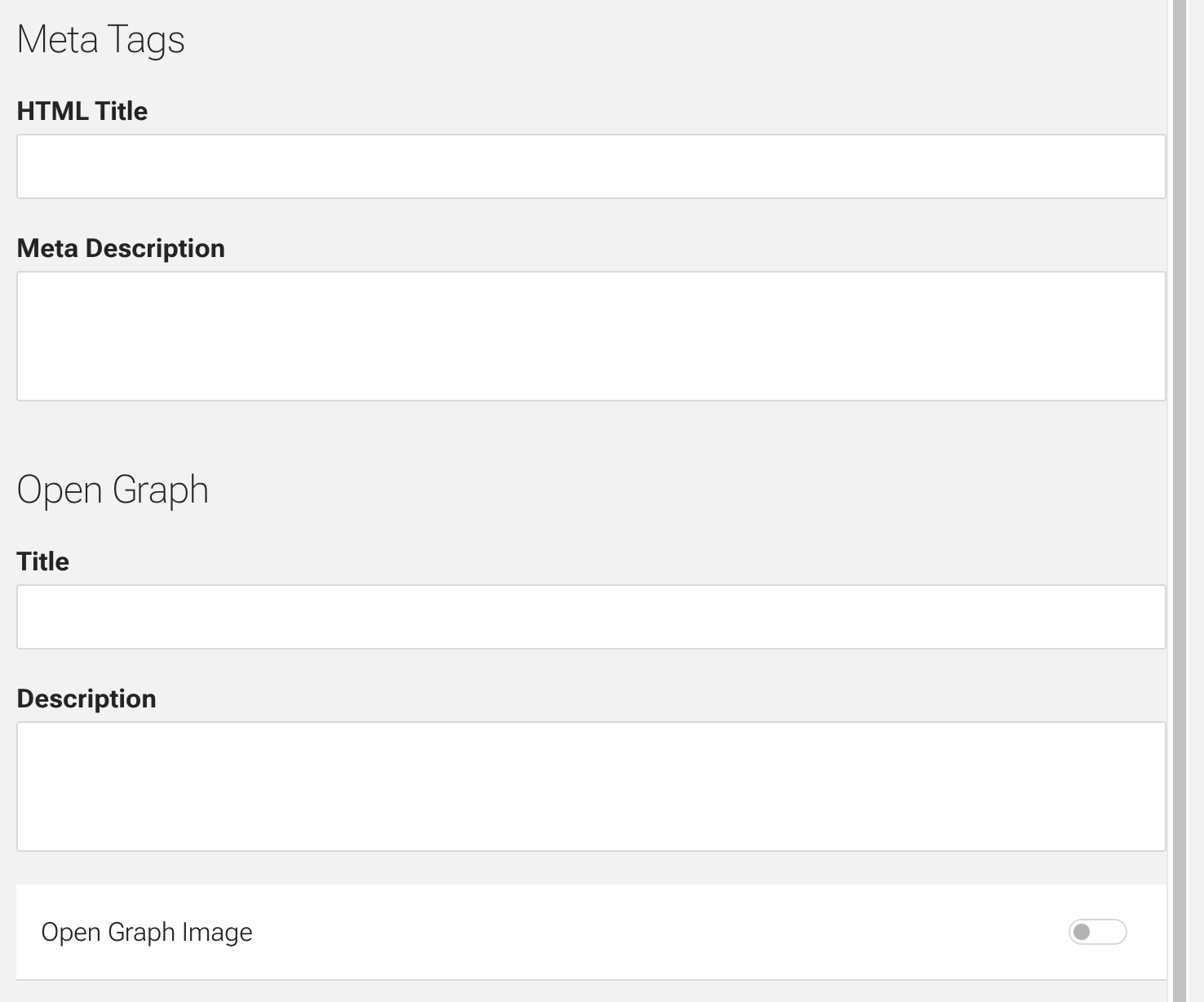

A SeoBlock

API​

Use the createSeoBlock factory:

seo.block.ts
import { createSeoBlock } from "@dextinity/cms-api";

export const SeoBlock = createSeoBlock();

Admin​

Use the createSeoBlock factory:

SeoBlock.tsx
import { createSeoBlock } from "@dextinity/cms-admin";

export const SeoBlock = createSeoBlock();

Site (Pages Router only)​

Use the SeoBlock component:

Page.tsx
import { SeoBlock } from "@dextinity/site-nextjs";

<SeoBlock data={document.seo} title="Custom title" />;

SpaceBlock​

The SpaceBlock factory can be used to create a block where a spacing can be selected from a list of available options.

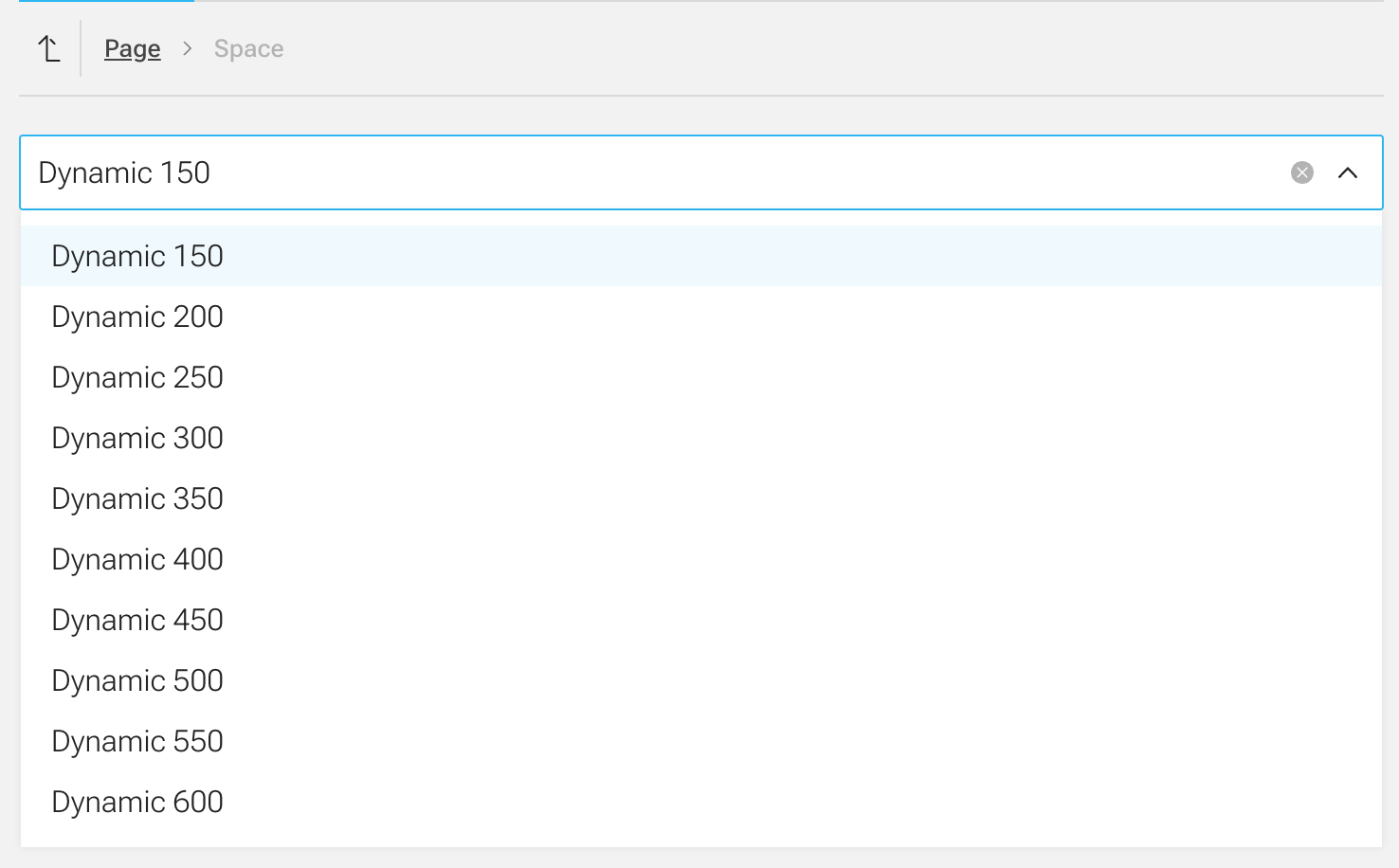

A SpaceBlock with a list of spacings

API​

Use the createSpaceBlock factory:

space.block.ts
import { createSpaceBlock } from "@dextinity/cms-api";

export enum Spacing {
d150 = "d150",
d200 = "d200",
d250 = "d250",
d300 = "d300",
d350 = "d350",
d400 = "d400",
d450 = "d450",
d500 = "d500",
d550 = "d550",
d600 = "d600",
}

export const SpaceBlock = createSpaceBlock({ spacing: Spacing }, "DemoSpace");

Admin​

Use the createSpaceBlock factory:

SpaceBlock.tsx
import { createSpaceBlock } from "@dextinity/cms-admin";

const options: { value: string; label: string }[] = [
{ value: "d150", label: "Dynamic 150" },
{ value: "d200", label: "Dynamic 200" },
{ value: "d250", label: "Dynamic 250" },
{ value: "d300", label: "Dynamic 300" },
{ value: "d350", label: "Dynamic 350" },
{ value: "d400", label: "Dynamic 400" },
{ value: "d450", label: "Dynamic 450" },
{ value: "d500", label: "Dynamic 500" },
{ value: "d550", label: "Dynamic 550" },
{ value: "d600", label: "Dynamic 600" },
];

export const SpaceBlock = createSpaceBlock<string>({ defaultValue: options[0].value, options });

Site​

SpaceBlock.tsx
import { PropsWithData } from "@dextinity/site-nextjs";
import { SpaceBlockData } from "@src/blocks.generated";

const spaceMapping: Record<string, number> = {
d150: 10,
d200: 20,
d250: 40,
d300: 60,
d350: 80,
d400: 100,
d450: 150,
d500: 200,
d550: 250,
d600: 300,
};

export function SpaceBlock({ data: { spacing } }: PropsWithData<SpaceBlockData>) {
return <div style={{ height: `${spaceMapping[spacing]}px` }} />;
}

TableBlock​

The TableBlock factory creates a block for editable tables with rich text cell content. It requires a RichTextBlock to be provided.

API​

Use the createTableBlock factory:

table.block.ts
import { createTableBlock } from "@dextinity/cms-api";

import { RichTextBlock } from "./rich-text.block";

export const TableBlock = createTableBlock({ richText: RichTextBlock });

Admin​

Use the createTableBlock factory:

TableBlock.tsx
import { createTableBlock } from "@dextinity/cms-admin";

import { RichTextBlock } from "./RichTextBlock";

export const TableBlock = createTableBlock({ richText: RichTextBlock });

Site​

Manually render the table, use RichTextBlock for the cell content.

Both rows and columns have a highlighted flag that can be toggled in the admin, typically used to designate a header row or column. Apply a distinct style when either the row or the column is highlighted.

TableBlock.tsx
import { PropsWithData } from "@dextinity/site-nextjs";
import { TableBlockData } from "@src/blocks.generated";

import clsx from "clsx";

import { RichTextBlock } from "./RichTextBlock";
import styles from "./TableBlock.module.css";

export function TableBlock({ data }: PropsWithData<TableBlockData>) {
return (
<table>
<tbody>
{data.rows.map((row) => (
<tr key={row.id}>
{data.columns.map((column) => {
const cellValue = row.cellValues.find(
(cellValue) => cellValue.columnId === column.id,
);
const isHighlighted = row.highlighted || column.highlighted;

return (
<td
key={column.id}
className={clsx(
styles.cell,
isHighlighted && styles["cell--highlighted"],
)}
>
{cellValue?.value && <RichTextBlock data={cellValue.value} />}
</td>
);
})}
</tr>
))}
</tbody>
</table>
);
}

TextImageBlock​

The TextImageBlock factory can be used to combine a text and an image block. It supports setting the image position and aspect ratio.

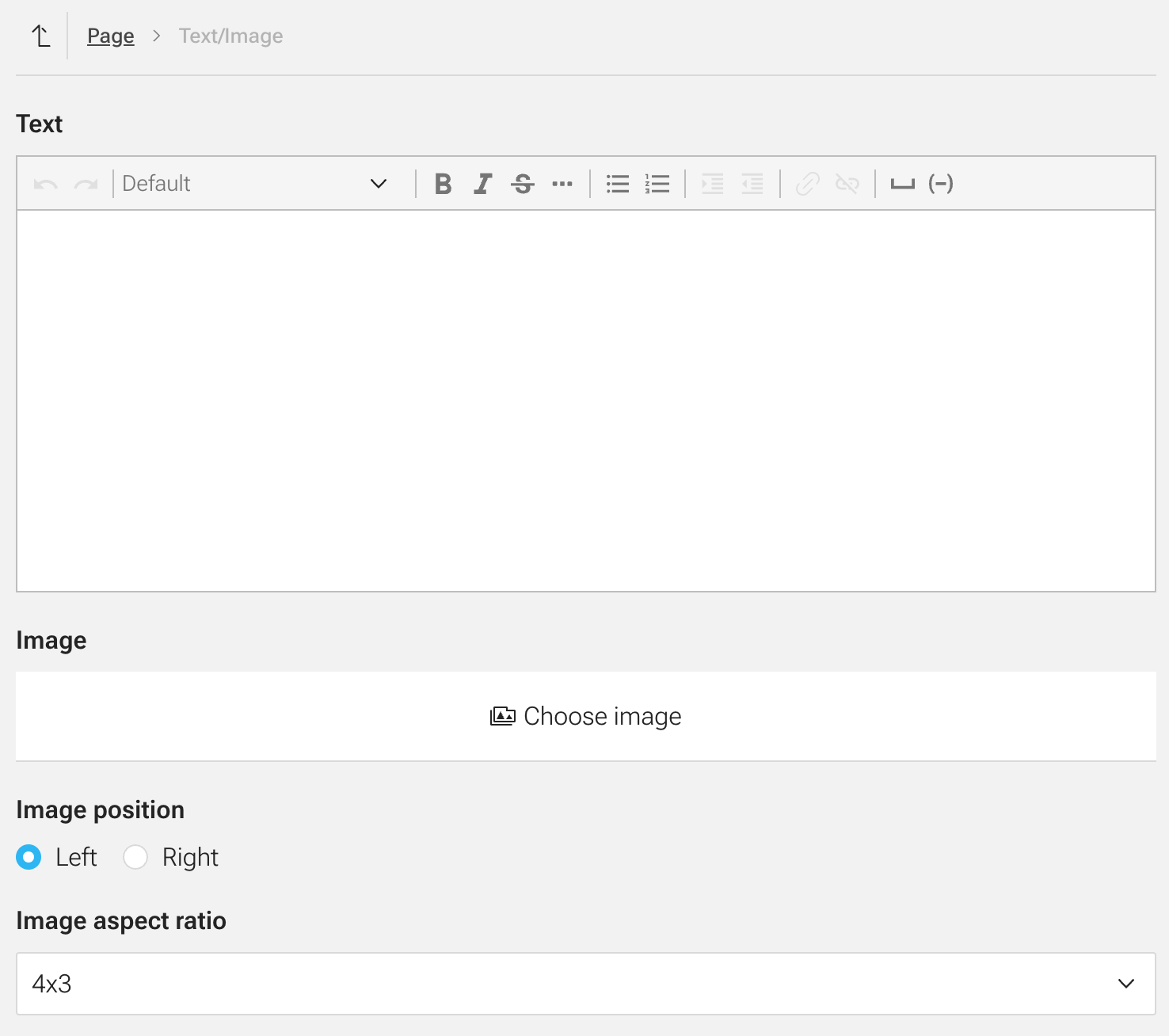

A TextImageBlock

API​

Use the createTextImageBlock factory:

text-image.block.ts
import { createTextImageBlock, DamImageBlock } from "@dextinity/cms-api";
import { RichTextBlock } from "@src/common/blocks/rich-text.block";

export const TextImageBlock = createTextImageBlock({ text: RichTextBlock, image: DamImageBlock });

Admin​

Use the createTextImageBlock factory:

TextImageBlock.tsx
import { createTextImageBlock, DamImageBlock } from "@dextinity/cms-admin";
import { RichTextBlock } from "@src/common/blocks/RichTextBlock";

export const TextImageBlock = createTextImageBlock({ text: RichTextBlock, image: DamImageBlock });

Site​

TextImageBlock.tsx
import { PropsWithData } from "@dextinity/site-nextjs";
import { TextImageBlockData } from "@src/blocks.generated";

import { DamImageBlock } from "./DamImageBlock";
import { RichTextBlock } from "./RichTextBlock";

export function TextImageBlock({
data: { text, image, imageAspectRatio, imagePosition },
}: PropsWithData<TextImageBlockData>) {
return (
<>
{imagePosition === "left" && (
<DamImageBlock data={image} aspectRatio={imageAspectRatio} sizes="50vw" />
)}
<RichTextBlock data={text} />
{imagePosition === "right" && (
<DamImageBlock data={image} aspectRatio={imageAspectRatio} sizes="50vw" />
)}
</>
);
}

TextLinkBlock​

The TextLinkBlock factory can be used to combine a text field and a link block.

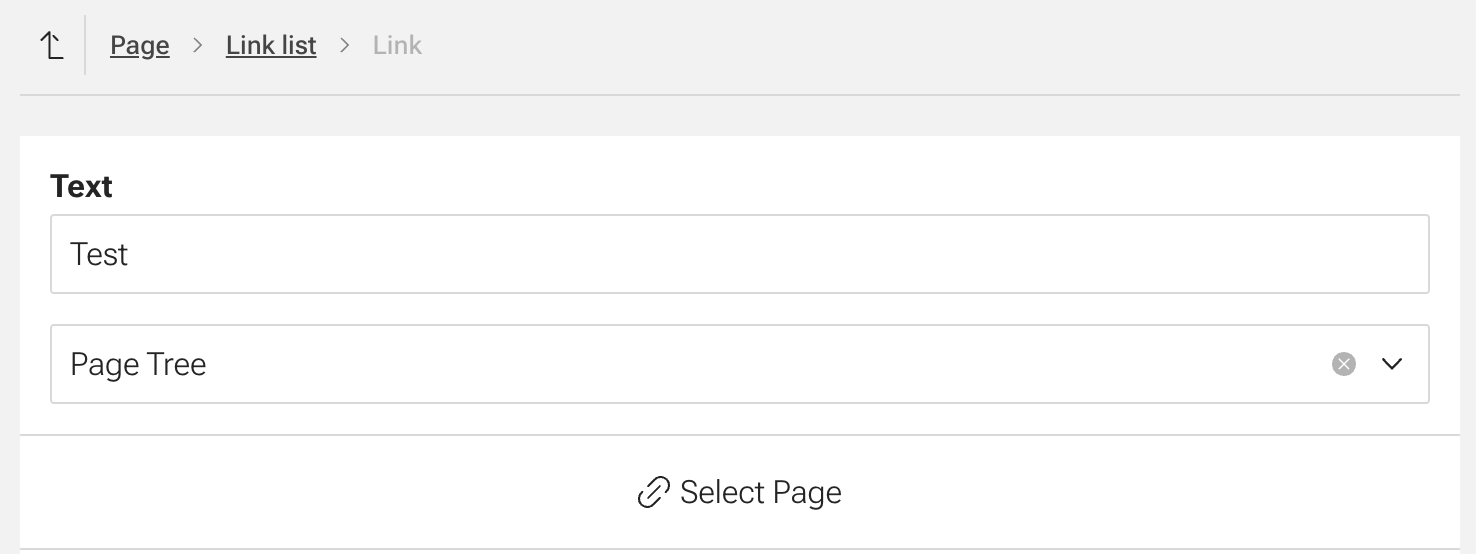

A TextLinkBlock

API​

Use the createTextLinkBlock factory:

text-link.block.ts
import { createTextLinkBlock } from "@dextinity/cms-api";

import { LinkBlock } from "./linkBlock/link.block";

export const TextLinkBlock = createTextLinkBlock({ link: LinkBlock });

Admin​

Use the createTextLinkBlock factory:

TextLinkBlock.tsx
import { createTextLinkBlock } from "@dextinity/cms-admin";

import { LinkBlock } from "./LinkBlock";

export const TextLinkBlock = createTextLinkBlock({ link: LinkBlock });

Site​

TextLinkBlock.tsx
import { PropsWithData } from "@dextinity/site-nextjs";
import { DemoTextLinkBlockData } from "@src/blocks.generated";

import { LinkBlock } from "./LinkBlock";

export function TextLinkBlock({ data: { link, text } }: PropsWithData<DemoTextLinkBlockData>) {
return <LinkBlock data={link}>{text}</LinkBlock>;
}
